Additional Information:

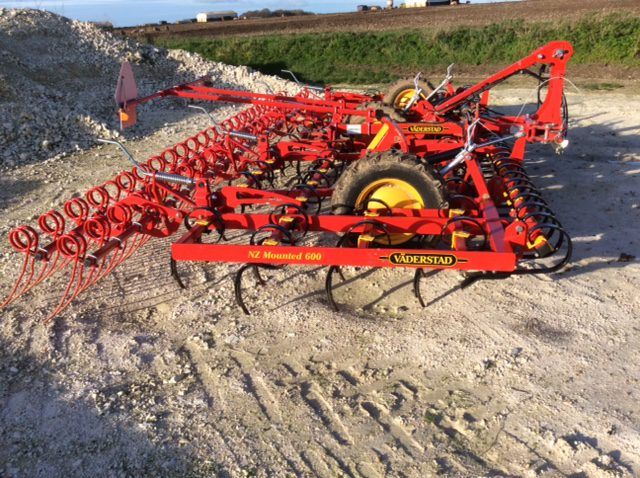

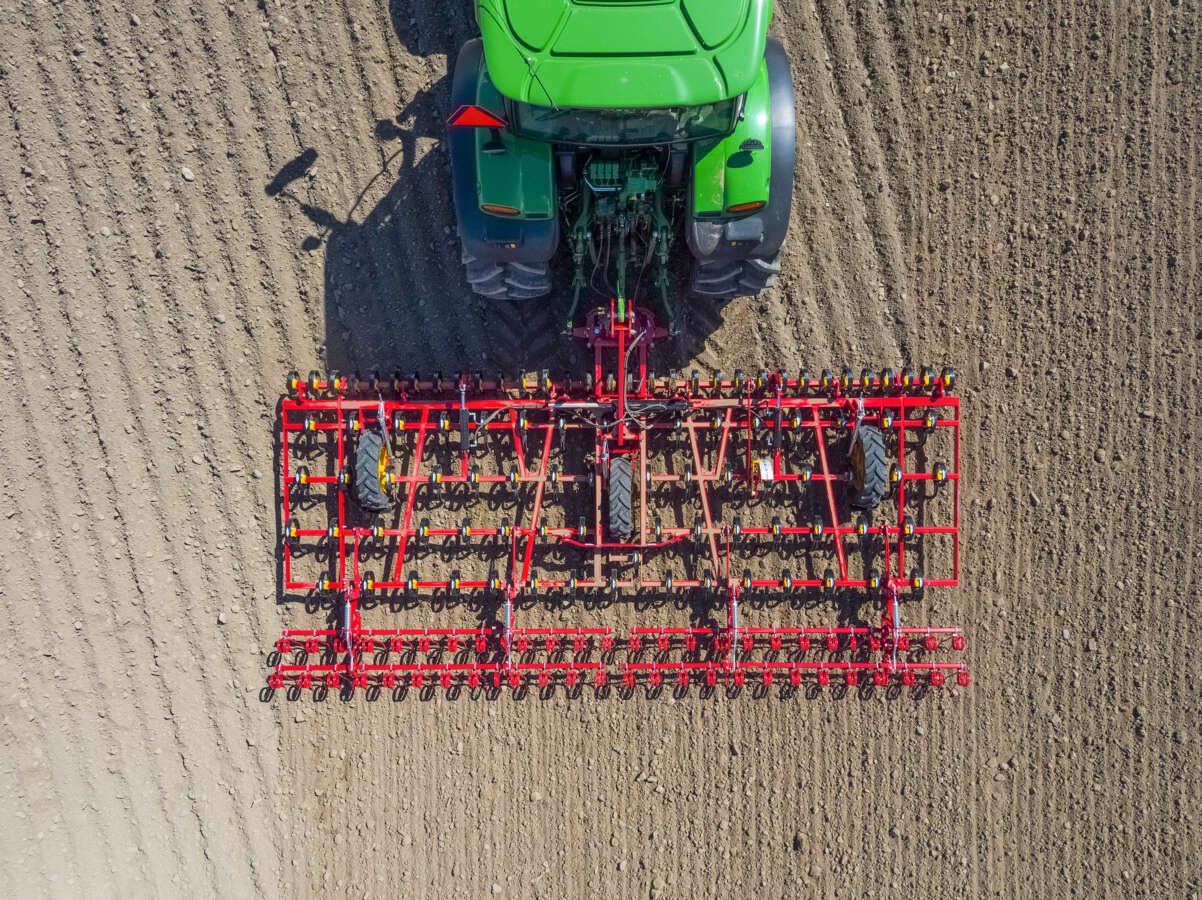

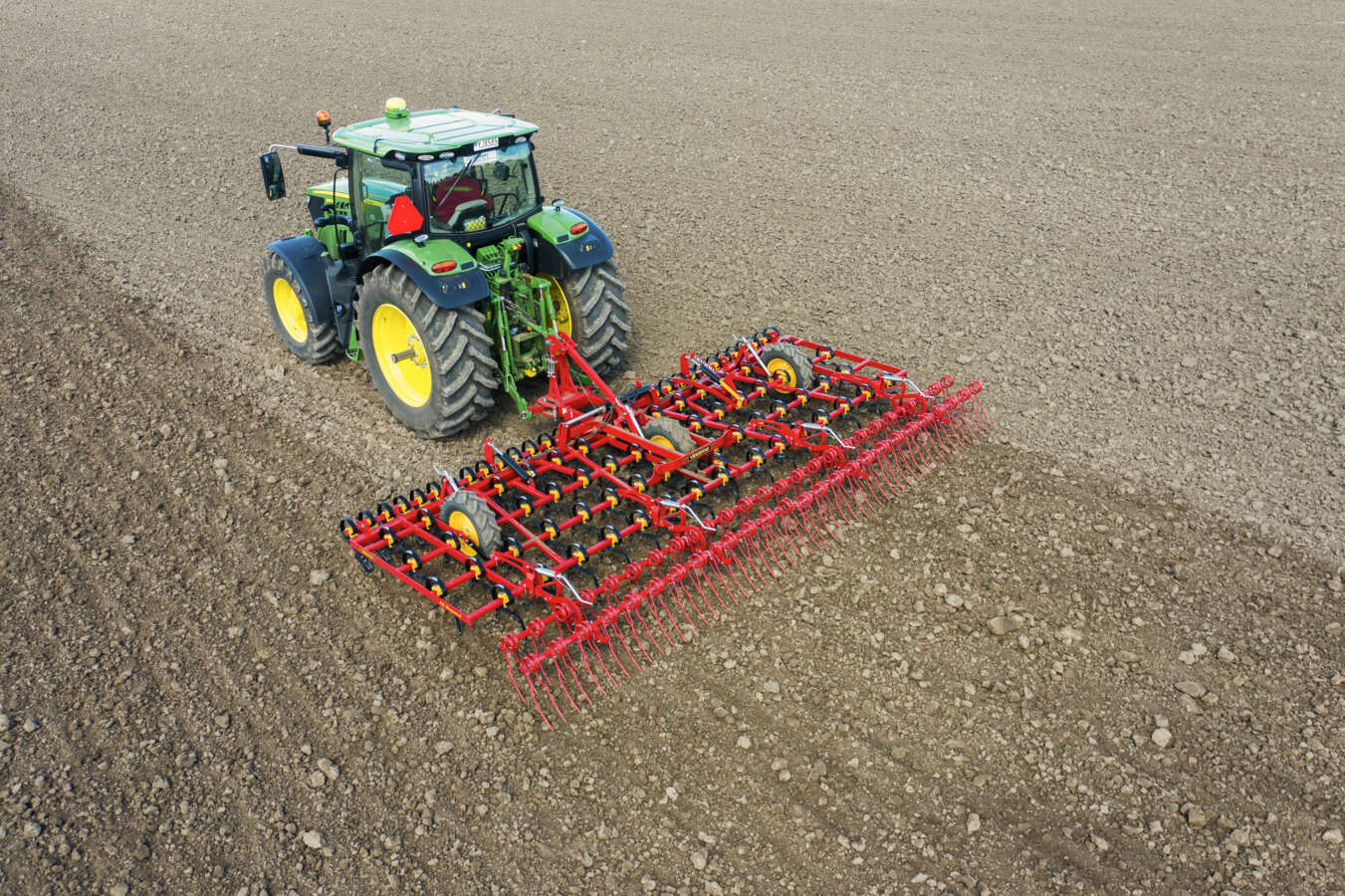

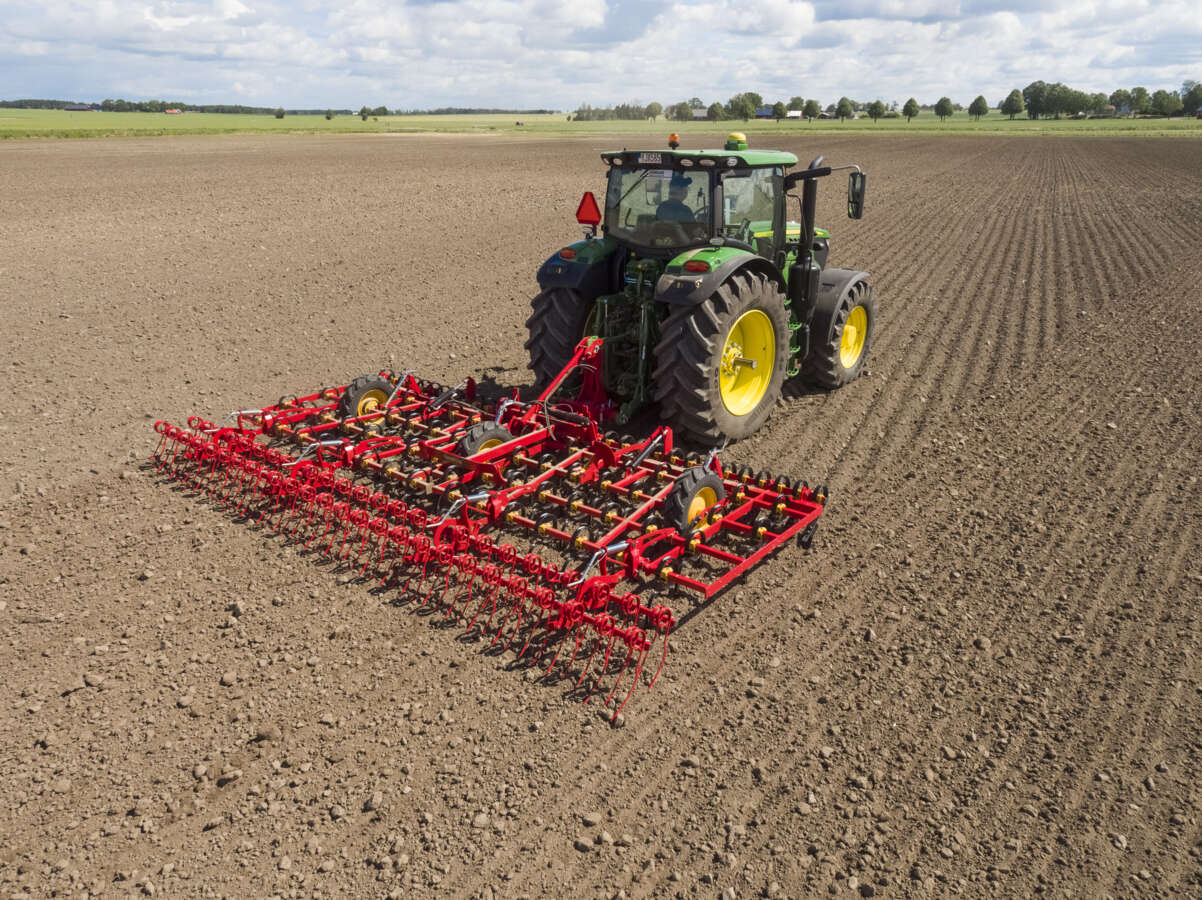

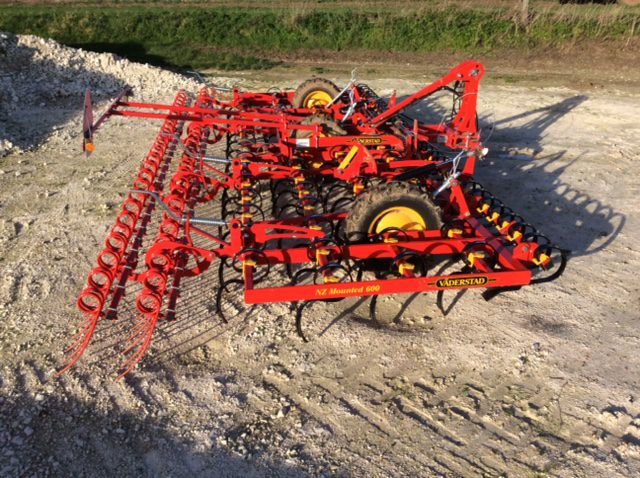

Vaderstad NZ Mounted 600 in stock for sale. 2020 Ex Demonstration model. The Vaderstad NZ Mounted is a mounted tine harrow with a 5-6 metre working width. Thanks to its ingenious drawbar, NZ Mounted is able to move independently from the tractor, thereby offering an exceptional contour following comparable to a trailed machine. With AgrillaNova tines fitted on four axles and a tine spacing of 9cm, you benefit from an intensive seedbed preparation. The Vaderstad NZ Mounted has a versatile drawbar, enabling the choice between a locked or a floating drawbar setting. In the floating position, NZ Mounted is able to move independently from the tractor, offering an exceptional contour following in three dimensions. If needed, the drawbar linkage can easily by locked, without the need for tools.

OffSet mounted support wheels provides NZ Mounted with stability lengthwise and ensures that the tines in the first row work at the same depth as the last row. The tractor threaded tyres eliminates bulldozing, while the large wheel diameter keeps the working depth and gives a smooth ride.

CrossBoard provides an intensive cultivation, ensuring that clods are crushed and the soil is levelled. The working intensity is controlled hydraulically from the cab.

To finish the seedbed preparation, the following harrow creates an evaporation barrier by sorting larger aggregates and weeds to the surface. The following harrow is mounted with rubber suspension to maintain a long working life. Both the angle and aggressiveness can be adjusted.

TECHNICAL SPECIFICATION:

• Effective working width (6m)

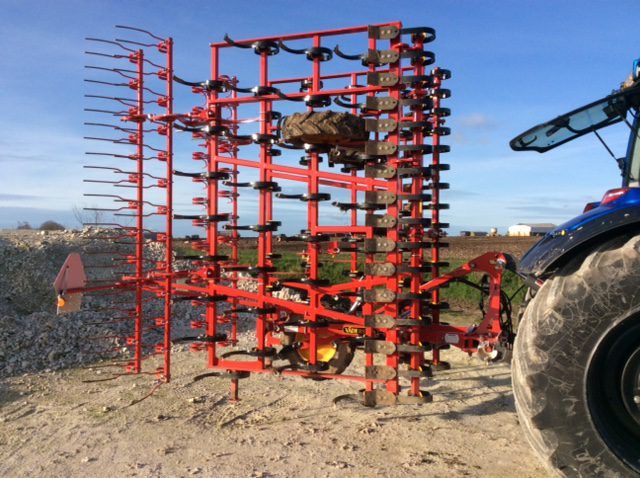

• Transport width (2.05m)
• Transport height (2.53m)
• Weight (1600kg)
• Number of tines 64
• Tine spacing (99cm)
• Wheel dimension (190/95-15 support wheels)
• Hydraulic requirements1 SA + 1 DA
• Draught requirements from (100-140hp)

We have a NZ Mounted 600 in stock at our Stoford depot. Please call 01722 716377 or email sales@redlynchtractors.co.uk for more information.
